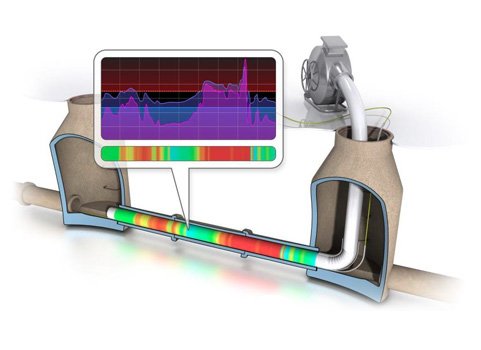

During liner cure, infiltration and other heat sinks can cause resin exotherm to occur non-uniformly with respect to time and distance. For this reason, measuring temperature at a liner’s endpoints or at couple dozen intermediate points provides no assurances that cure has happened everywhere between. VeriCure monitors cure temperature continuously along a CIPP liner during installation, helping ensure the host pipe is rehabilitated to specification and performs as intended. Designed to distinguishing localized thermal variations, VeriCure takes readings every inch and averages them into 18” measurement zones—a spatial resolution at least seven times that of other technologies.

The software supplied with VeriCure is tailored to CIPP professionals. It delivers real-time data to help you control cure for maximum quality and efficiency, and it summarizes the completed process with a report for the asset owner. In each measurement zone, the software verifies that cure temperate has been met and maintained for the appropriate amount of time, and that cool-down happens at the specified rate. By aggregating this zone data, VeriCure is able to give simple indications of when cure temperature has been reached, and when cure and cool-down are complete. The final data is summarized in a gradient chart whose axes represent time and distance, and

Benefits

•  Prevent lifts and other costly failures.
•  Achieve full cure with minimal time and fuel.
•  Document successful installation for asset owner and consulting engineer.
•  Maximize detail with readings taken every inch and averaged into 18" zones.
•  Easily comprehend real-time and historical data using software tailored to CIPP professionals.
•  Preserve liner's flow characteristics with unobtrusive 3mm probe.
•  Enhanc measurement reliability with fiber optic probe that use no electronics underground.
