Schroder - SINGA Series
Singa Series Robotic Crawlers are suitable for pipes ranging from 150mm to 2000mm
The Singa Series Robotic crawlers are ideal equipment for in-pipeline CCTV monitoring. Equipped with high resolution cameras with strong and adjustable LED lights, the Singa Series provide high quality in-pipe video footages for inspection and analysis. Available in 3 different sizes, the Singa Series Robotic Crawlers are suitable for pipes ranging from 150mm to 2000mm.
Standard Parts

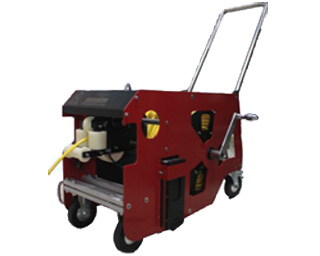

Cable Reel

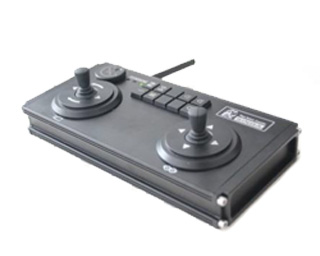

Remote Control

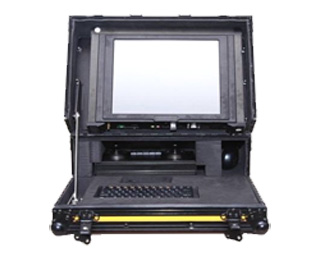

12.1” Touch Screen Display
Add Ons
Cable Reel
Remote Control
12.1” Touch Screen Display
SINGA100
SINGA200
SINGA300
| Crawler | SINGA100 | SINGA200 | SINGA300 |
|---|---|---|---|
| Camera | 50mm Sony CCD | 90mm Sony PTZ | 90mm Sony PTZ |
| Size | 50mm | 90mm | 90mm |
| Resolution | 480 TVL | 530 TVL | 530 TVL |
| Zoom | None | 10x Optical, 12x Digital | 10x Optical, 12x Digital |
| Pan & Tilt | Pan 360° Tilt 180° | Pan 360° Tilt 270° | Pan 360° Tilt 270° |
| Min Focal Length | 10mm | 10mm | 10mm |
| Material | Aluminium | Aluminium | Aluminium |
| Min. Luminance | 0.01 lx | 0.01 lx | 0.01 lx |
| LED luminance | 150 lm | 400 lm | 800 lm |
| Rear Camera | No | Yes | Yes |
| Environment | IP68 | IP68 | IP68 |
| Crawler | 6-Wheel Drive | 4-Wheel Drive | 6-Wheel Drive |
| Pipe diameter | 100mm to 600mm | 200mm-2000mm | 300mm to 2000mm |
| Weight | 6.5kg | 17kg | 25kg |
| Crawling Speed | 18m/min | 35m/min | 35m/min |
| Motor | 2 x 25W | 2 x 80W | 3 x 90W |
| Material | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |
| Tires | 6 x 50mm, 4 x 130mm | 4 x 130mm, 4 x 230mm | 6 x 130mm, 4 x 230mm |
| Display and Control | |||
| Screen and Control Panel | 12.1" Touch Screen LED Display | ||
| Resolution | 1024 x 768 | ||
| Storage | 64Gb | ||
| Photo Output | JPG | ||
| Video Output | AVI | ||
| Additional Features | Input text in video footages, Remote Control, User interface available in English and Chinese, Keyboard and Mouse | ||
| Cable Reel | Manual | Semi-auto | Full Auto |
| Retracting | Manual | Manual | Auto |
| Alignment | Manual | Auto | Auto |
| Dimension | 700 x 440 x 480 mm | 700 x 440 x 480 mm | 70 x 440 x 480 mm |
| Diameter of cable | 8mm | 8mm | 8mm |
| Length of cable | 120m | 120m | 120m |
